Positive Pulp Cylinder Mould Tissue Paper Machine

Positive pulp cylinder mould tissue paper machine is mainly used to produce tissue paper. The paper machine is divided into several parts: net groove, cylinder mould part, press part, drying part and reeling part.

Features

1. Over 30 years production experience,we are specializing in making all kinds of paper machines and pulp equipment.
2. 20000 square meters workshop with more than 200 staffs including 50 engineers will be your best support and specialize in making all kinds of paper recycling machines.
3. Full technical support:we will provide the foundation drawings of the machine and installation support.
4. ISO9001:2000 and BV certification.
5. Strict quality control of every procedure,full guarantee of the quality of every single packaging.



Positive Pulp Cylinder Mould Tissue Paper Machine Parts

Net groove: Square cone pipe pulp inlet, movable curved plate pulp machine, control and stabilize the pulp speed and concentration by adjusting and controlling pulp inlet pressure and curved plate aperture of inlet pipe.

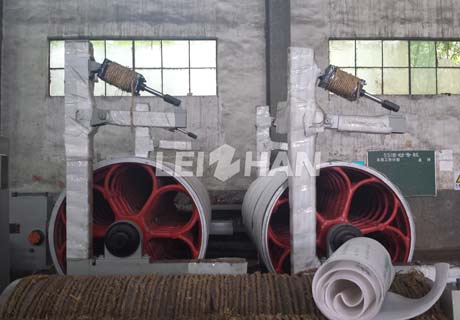

Cylinder mould part: One cylinder mould, main parts: couch roll, back roll and frame and so on.

Press part: Carrier roller press is made of idler roller and big diameter cylinder, and equip with one covered rubber metal roll. Carrier roller press includes guide felt roll, felt suction box and a felt. the idler roll press’s pressure method is corrugated tire pressure.

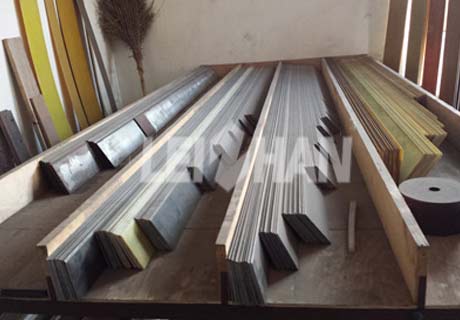

Drying part: Φ3000/Φ3600 dryer cylinder, individual drive and equip with closed type hot blast air hood, a wrinkle scraper and a clean scraper. Pressured way is air cylinder pressure.

Reeling part: Pneumatic horizontal type paper reeling machine, air cylinder pressure. It installs on the top platform of cylinder mould part.
