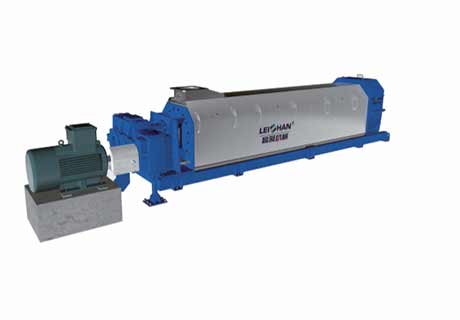

LXYZ Series Screw Press

LXYZ Series Screw Press  is mainly suitable for washing and thickening all kinds of paper pulp which is used in paper pulp processing line.


1. Mainly suitable for washing and thickening all kinds of paper pulp.
2. For screw shaft, the compression ratio is axially distributed reasonably, thickening effect is good.
3. In discharge side, fitted with inner dewatering assembly with holes, which can efficiently secure uniformly of dewatering of inside and outside pulp layer.
4. Pneumatic back-push assembly can guarantee the stability and adjustment of discharge consistency.
5. Special screw structure in outlet, easy to maintain.

Technical Data Of LXYZ Series Screw Press

LXYZ435 LXYZ454 LXYZ604 LXYZ754 LXYZ756 LXYZ1005 LXYZ1006
 Screw diameter (mm) 450 450 600 750 750 1000 1000
Inlet consistency  (%) 10-14
 Outlet consistency (%) 25-35
 Capacity (t/d) 40-60 60-80 80-100 100-150 150-200 200-250 250-300
Max. Power (kw) 90 132 160 250 315 350 400


1. Offering comprehensive technical and business consultation services;
2. Proposing the most suitable scheme and equipment for our clients;
3. Designing and fabricating targeted products according to the special requirements of clients;
4. Training periodically high qualified service technician.
