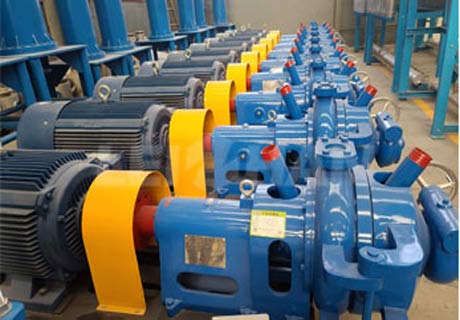

ZDP Series Double Disc Refiner

ZDP Series Double Disc Refiner is mainly used for beating and improving the beating degree of pulp to satisfy the paper making demand.


1. ZDP Series Double Disc Refiner can be equipped with various tooth refiner plate.
2. Suitable various raw materials like wood pulp, chemical pulp, mechanical pulp and waste paper pulp.

Technical Data Of ZDP Series Double Disc Refiner

Type Φ380 Φ450
Diameter of Disc (mm) 380 450
Production Capacity (t/d) 6-20 8-60
Concentration of InputPulp (%) 2-5 3-5
Pressure of Input Pulp (Mpa) 0.1-0.2 0.15-0.2
Motor Power (kw) 37-55 75-90-110


1. Offering comprehensive technical and business consultation services;
2. Proposing the most suitable scheme and equipment for our clients;
3. Designing and fabricating targeted products according to the special requirements of clients;
4. Training periodically high qualified service technician.
