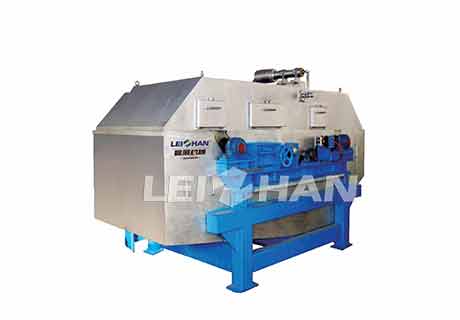

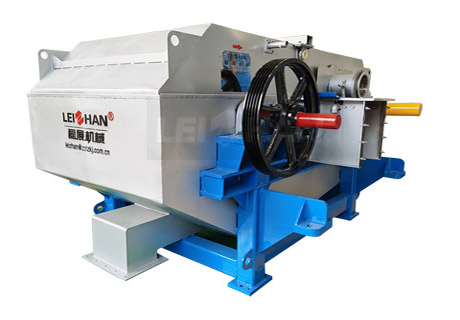

ZNG High-speed Stock Washer

Leizhan high performance ZNG High-speed Stock Washer is mainly used for washing and concentrating in various domestic and overseas waste recycled pulp, chemical pulp before or after bleaching. Removing ink particles, fillers and other small impurities from the slurry with high efficient.


1. High efficiency of impurity prolapse.
2. High efficiency dewatering, very clean after wash the slurry.
3. Less occupied area.
4. Large production capacity, low power consumption.

Technical Data Of ZNG High-speed Stock Washer

Type ZNG10 ZNG15 ZNG20 ZNG25
Working Width (mm) 1000 1500 2000 2500
Concentration Of Input Pulp (%) 0.8-1.5
Concentration of Output Pulp (%) 8-15
Capacity MOW (t/d) (AOCC37#) 40-70 55-100 70-130 100-180
Capacity ONP (t/d)) 30-50 40-70 50-90 60-110
Ash Removal (%) ≧90
Power of Main Motor (kw) 30 37 55 75
Motor for Screw Conveyor (kw) 5.5 5.5 7.5 7.5


1. Offering comprehensive technical and business consultation services;
2. Proposing the most suitable scheme and equipment for our clients;
3. Designing and fabricating targeted products according to the special requirements of clients;
4. Training periodically high qualified service technician.
