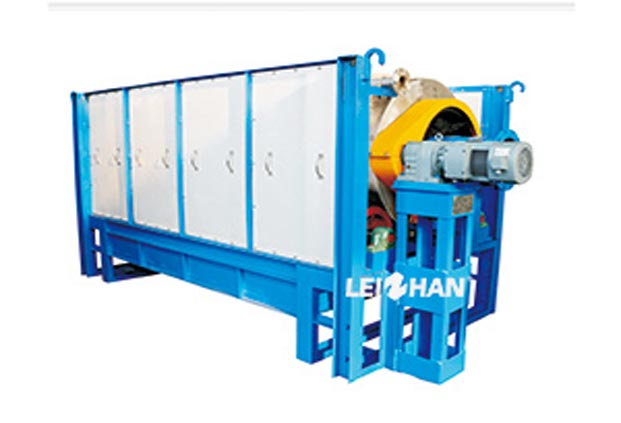

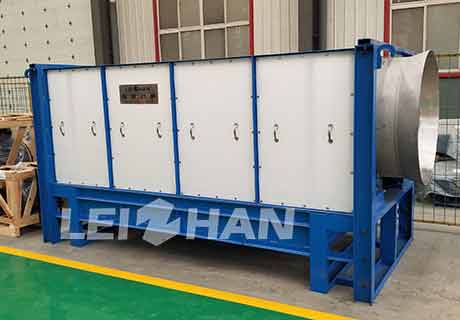

ZST Series Drum Screen
ZST series drum screen is used to remove light impurity in recycled paper pulping system.
Features
1. Mainly used for removing large light impurities in waste paper pulping system.
2. Optimized helical blade and water spray system ensures the high purity of paper pulp and less fiber loss.
3. Simple structure, reliable operation and easy maintenance.
4. Effective screening, low motor power.
Working Principle
Drum screen provides a simple, efficient and economical solution to upgrade a wide rang of material and optimize the subsequent process. This method of screening helps to reduce operating and investment cost and increase product quality, while allowing rapid and large volume processing. It is made of high quality material, designed for high performance, high production rates, lower operating costs and lower maintenance.
Technical Data Of ZST Series Drum Screen
| Type | ZST1A | ZST2A | ZST4A |
| Diameter of screen drum(mm) | Φ1000 | Φ1500 | Φ2000 |
| Passing capacity(L/min) | 3000-5000 | 6000-8000 | 9000-12000 |
| Motor power(Kw) | 4 | 5.5 | 11 |
Service
1. Offering comprehensive technical and business consultation services;
2. Proposing the most suitable scheme and equipment for our clients;
3. Designing and fabricating targeted products according to the special requirements of clients;
4. Training periodically high qualified service technician.
