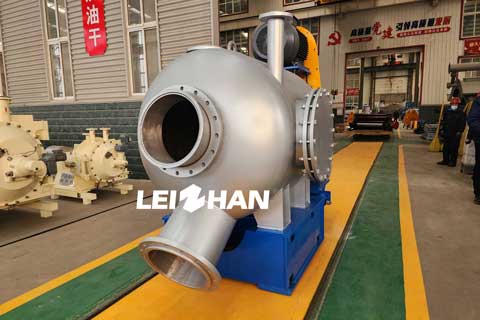

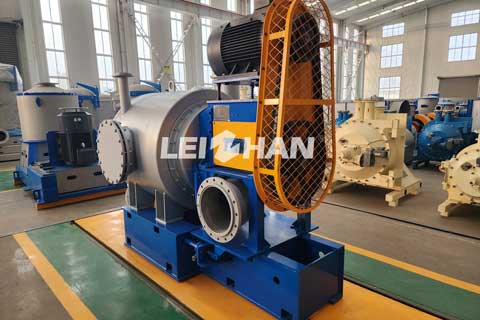

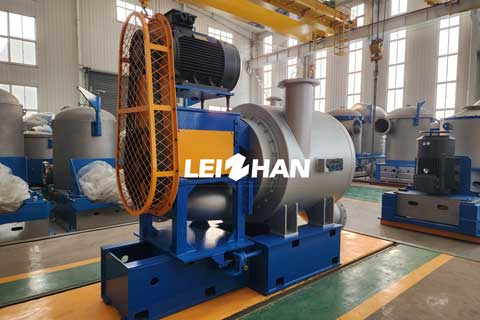

CXJ Series Hydrapurge
Application&Feature
1. It is mainly used in pulp and paper industry wasle paper Lrealment process, processes Lhe pulp which is
pulped by high consistency pulper, collects and concentrates impurities in the pulp, so as to reduce the
burden on screening and cleaning equipment in the subsequent process.
2. Match with high-consistency pulper, it can shorten the processing cycle, avoid impurity refinement, and
improve the production capacity of the pulping system.
3. The optimized shell design enhances the ability to capture impurities.
The main technical parameters
| Model | CXJ1 | CXJ2 | CXJ3 |
| Equipment volume: m³ | 1 | 2.5 | 5 |
| Throughput: L/min | 8000-13000 | 15000-20000 | 22000- 30000 |
| Pulp inlet consistency: % | 4-5 | ||
| Motor power: kw | 37 | 75 | 160 |
Service
1. Offering comprehensive technical and business consultation services;
2. Proposing the most suitable scheme and equipment for our clients;
3. Designing and fabricating targeted products according to the special requirements of clients;
4. Training periodically high qualified service technician.
