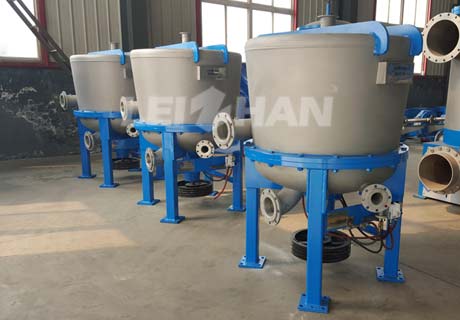

FQJ Series Light Impurity Separator

FQJ series light impurity separator(also known as apple screen, for its shape looks like apple) can efficiently remove light impurities in paper pulp and it also can used for dealing with tail pulp in the coarse screening section of pulp manufacturing line.

Features

1. The main body is an inverse conical design, concave top structure can form a strong vortex, forming a low pressure area in the top center and getting the light impurities and discharge them outside effectively.
2. Pulp outflow chamber of rotor is higher than undersurface of shell, forming a low pressure area around the rotor to collect heavy impurities. Under centrifugal force, the heavy impurities are thrown to the outermost of eddy and deposit in the groove that is outside the sieve plate for discharging. At the same time, it will reduce the wear to cutter and sieve plate, prolong the service life of them.

Technical Data Of NLS Series Inflow Pressure Screen

Type FQJ0.4 FQJ0.8 FQJ2
Nominal Volume (m3) 0.4 0.8 2
Treating Consistency(%) 0.5-2
Production Capacity(t/d) 35-45 65-85 110-140
Motor Power (kw) 30 55 110

Service

1. Offering comprehensive technical and business consultation services;
2. Proposing the most suitable scheme and equipment for our clients;
3. Designing and fabricating targeted products according to the special requirements of clients;
4. Training periodically high qualified service technician.
