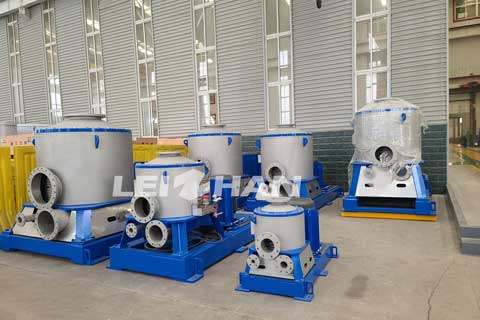

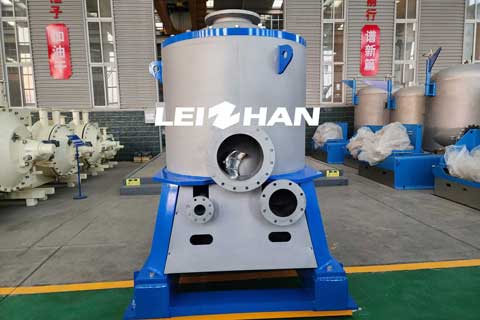

XZNS Series New Mid-Consistency Pressure Screen

Function and features:

1. Pulp enters from the top of the pressure screen, By gravity to effectively remove heavy impurities, reduce wear on the rotor and screen basket, and prolong the service life;
2. Improve the screen efficiency, better removal of stickies;
3. Significantly reduce energy consumption, energy saving up to 25%;
4. Further optimization of screen basket size, stronger adaptability, lower thickening coefficient, can efctitvely recduce fiber loss and reduce the possibility of clogging.
5. Wider application, suitable for various raw materials;
6. Easier maintenance and less unplanned downtime.

Main technical parameters

Model XZNS0.5 XZNS0.9 XZNS1.5 XZNS2.3 XZNS3.5 XZNS4.7
Nominal area(㎡) 0.5 0.88 1.49 2.3 3.53 4.67
Screen hole size (mm) φ1.6-φ3.5
Screen slot size (mm) 0.1-0.65
Production capacity (t/d) Coarse screen 90-160 135-250 200-380 260-500 400-700 500-1000
Fine screen 20-100 30-150 50-230 70-300 100-450 120-700
Inlet consistency (%) 1-4
Motor power (kw) 11-45 22-75 30-110 45-160 55-250 90-355


1. Offering comprehensive technical and business consultation services;
2. Proposing the most suitable scheme and equipment for our clients;
3. Designing and fabricating targeted products according to the special requirements of clients;
4. Training periodically high qualified service technician.
